Serial and Parallel PID Controller

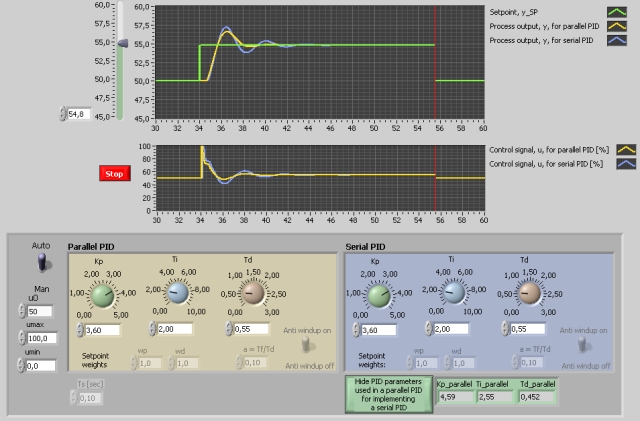

Snapshot of a part of the front panel of the simulator:



Description of the system to be simulated

Some commercial PID controllers implement a PID controller function on serial form, while others use the parallel form. The serial form corresponds closer to the former pneumatic controllers. In this simulator two PID control systems are simulated simultaneously - one with a serial PID controller and one with a parallel PID controller. Therefore, it is easy to compare the behaviour of these two control systems. The process which is controlled is given by a transfer function model, namely a second order system in series with a transport delay.

In the simulator the user can choose to transform the PID parameters for a serial PID controller to parameters for a parallel controller so that the parallel controller behaves like a serial controller.

Here is the parallell PID controller:

Here is the serial PID controller:

Here are the transformations from serial to parallell PID settings:


Aim

The aims of this simulator is to observe differences between a PID controller on serial form and a PID controller on parallel form, and to see if there is any use of transforming parallel PID parameters to serial PID parameters.


Motivation

There are both serial and parallel commercial PID controllers. It is useful to see if there is any substantial difference between these two controllers. Furthermore, it may be useful to see if a transformation from serial PID parameters to parallel PID parameters has any important effect.


Tasks

In the outset you can use the following PID parameters (found by using the Ziegler-Nichols' closed loop method on the default process):

Kp = 3.6; Ti = 2.0; Td = 0.5

  1. First, use the same PID parameter values in the serial controller as in the parallel controller. Is there any substantial difference between the responses in the process output variable of the two control systems due to a setpoint step and a disturbance step?
  2. What are the PID parameter settings for the parallel controller when the serial PID settings are transformed to parallel PID settings? Apply these transformed PID settings to the parallel controller. Is there any observable difference between the responses in the two control systems?
