Tips for using the simulators

1. You can change the maximum and minimum values of a scale by double-clicking on these values and typiung new values. See Figure 1.



   Figure 1

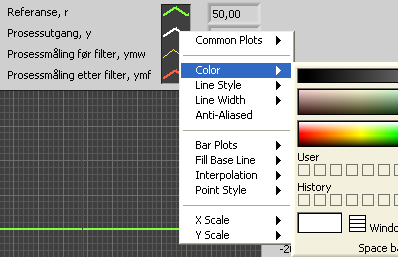

2. You can change the appearance of curves by clicking on the plot legend above the diagram, see Figure 2.



   Figure 2



3. You can reset the value of an element (for example a slider) to its default value (as defined by the developer) by right-clicking on the element and choosing Reinitialize to Default in the menu which is opened, see Figure 3.



   Figure 3

   You can reset the values of all of the elements on the frontpanel of the simulator  to their default values via the menu Operate / Reinitialize All to Default.



4. You can zoom a diagram by opening its Graph Palette: Right-click on the diagram / Visible Items / Graph Palette, ses Figure 4.



   Figure 4



5. You can print the front panel of the simulator via the menu File / Print Window.
