Cascade control of heat exchanger temperature

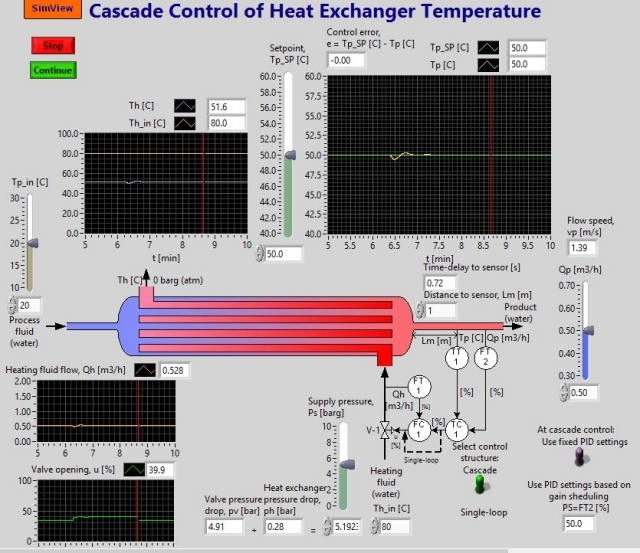

Snapshot of the front panel of the simulator:
- What is needed to run the the simulator? Read to get most recent information!
- Tips for using the simulator.
- The simulator: cascade_control_temp_heat_ex.exe . The simulator runs immediately after the download by clicking Open in the download window. Alternatively, you can first save a copy of the exe-file on any directory (folder) on your PC and then run the exe-file, which starts the simulator.
Description of the system to be simulated
The simulated system is a cascade control system for temperature control of a heat exchanger.
Video
Aim
The aim is to observe how cascade control is improving the temperature control comparing with single loop control.
Motivation
...
Tasks
Try single loop control first, and then cascade control. Is the control system performance improved with cascade control?
Updated 16 August 2017. Developed by Finn Haugen. E-mail: finn@techteach.no.
