Feedforward control of heat exchanger temperature

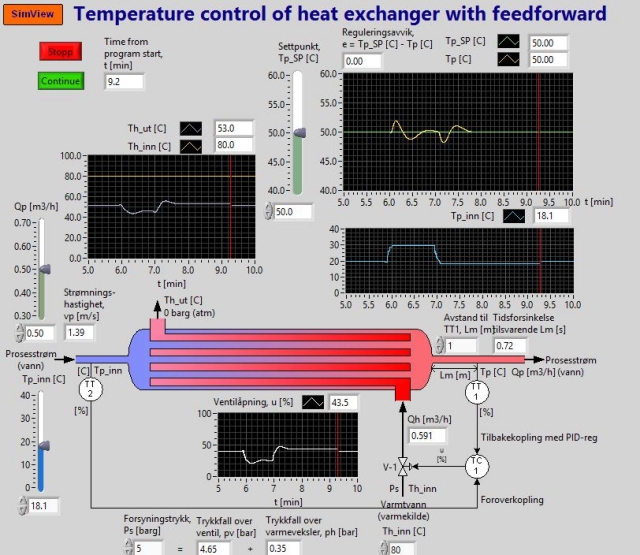

Snapshot of the front panel of the simulator:
- What is needed to run the the simulator? Read to get most recent information!
- Tips for using the simulator.
- The simulator: feedforward_temp_control_heat_ex.exe . The simulator runs immediately after the download by clicking Open in the download window. Alternatively, you can first save a copy of the exe-file on any directory (folder) on your PC and then run the exe-file, which starts the simulator.
Description of the system to be simulated
The simulated system is a feedforward (plus feedback) control system for temperature control of a heat exchanger. The feedforward is from measured process liquid temperature. The feedforward controller is experimental, implemented as a table-lookup function.
Aim
The aim is to observe how adding feedforward control to the basic feedback control is improving the disturbance compensation of the control system.
Motivation
Disturbance compensation is the main task of most control systems.
Tasks
While adjusting the T_{in} temperature, try first feedback control and then add feedforward control. Is the control system performance improved with feedforward control?
Updated 16 August 2017. Developed by Finn Haugen. E-mail: finn@techteach.no.
