# Level Control of a Wood Chips Tank

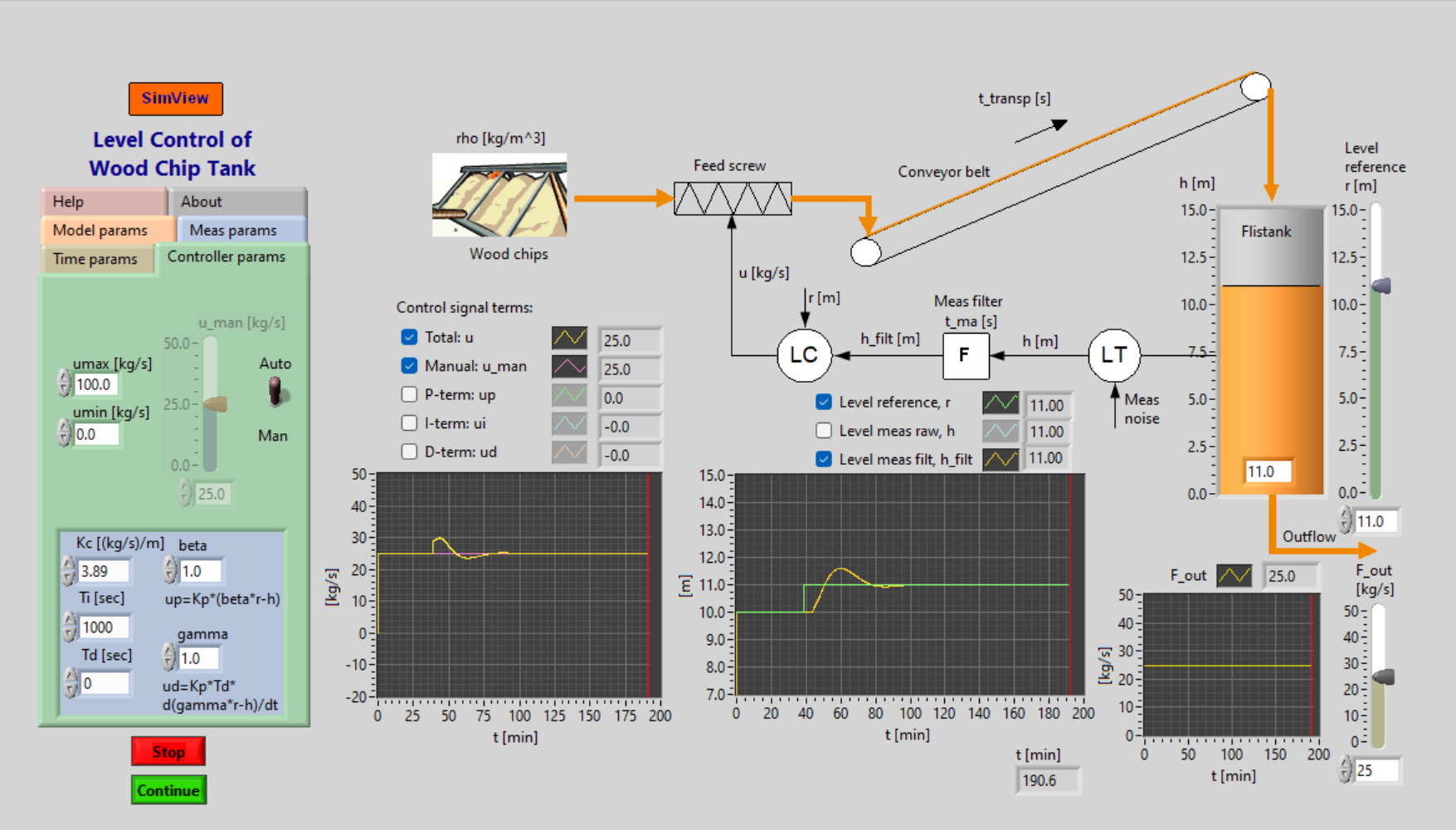

Snapshot of the front panel of the simulator:

• What is needed to run the the simulator? Read to get most recent information!
• Tips for using the simulator.
• The simulator: . The simulator runs immediately after the download by clicking Open in the download window. Alternatively, you can first save a copy of the exe-file on any directory (folder) on your PC and then run the exe-file, which starts the simulator.

## Description of the system to be simulated

The level control system for a wood chips tank is simulated. The purpose of the level control is to keep the level between specified limits: It is important that the level is not too high, otherwise the chip will not be sufficiently pre-heated (by steam from the cookery), or the tank will simply run full. And it is important that the level is not too low, otherwise the steam will stream through the chip causing an awful smell in the neighbourhood.

The level control system is inspired by, and is similar to, the level control system at Tofte SÃ¸dra Cell plant in Norway. (The physical plant does not exist any more, but the simulated plant is still alive (here).)

The process consists of a chip tank with an inlet screw, a conveyor, and an outlet screw. The inlet flow can be controlled by adjusting the screw control variable. The outlet flow can not be controlled, and it constitutes a disturbance on the level.

## Mathematical description of chip tank, level sensor and measurement filter

Below is a mathematical model of the process. However, knowledge about this model is not necessary to do the tasks below.

### Process model

A mathematical model of the process can be found using a mass balance:

 A*r*dh(t)/dt  = u(t-ttransp) - Fout(t) (Eq. 1)
• h [m] is the level. h is the process output variable, which is to be controlled.
• u [kg/s] is the control variable, acting on the inlet screw, and giving a proportional mass flow through the screw.
• A [m2] is the cross sectional area of the tank.
• r [kg/m3] is the chip density.
• ttransp [s] is the transport time of the conveyor belt, which runs with constant speed. ttransp can also be denoted as dead time or time delay.
• Fout [kg/s] is the mass outflow from the tank. Fout is a disturbance on the level.

Dynamically, this process is "an integrator with dead-time" from the screw control.

The values of the model parameters are available via the front panel of the simulator.

### Level measurement and measurement filter

The level is measured with an ultrasound level sensor.

Measurement random noise is added to the level measurement. The measurement signal passes through a lowpass filter which attenuates the noise component of the signal. The filter is a moving average filter with filter time constant t_f [s]. The filter action is removed by setting t_f = 0.

## Aims

The aims of the tasks given below are

• to give an understanding of how an automatic feedback control system works, and which benefits feedback control has compared to using a fixed value of the manipulated variable
• to give an understanding of the properties of PID control
• to develop skills in tuning controller parameters
• to give insight into how various parameters (in the controller, in the process, and in the measurement device) influates the dynamic properties and the stability properties of the control system.

In other words: This lab will give your (more) insight into the most important issues of control engineering!

## Motivation

Control systems are essential in industry because it is important to control process variables so that they are kept equal to or close to set-points. The PID-controller is by far the most frequently used controller function, and it is a main topic in this lab.

This lab is about level control, and in most plants there is a need to control level. The simulated tank with it's level control system in this lab is a "real" system, as it actually exists, as mentioned above.

## Suggested exercises

In the tasks below it is assumed that the process is in it's nominal operating point unless something else is stated. The nominal operating point is defined as follows:

• The level reference (setpoint) is 10 m.
• The chip outflow is Fout = 25 kg/s = Fout,nom.
• The nominal value of the manipulated variable is unom =  45%, which gives an inflow that is equal to the nominal outflow.
• The moving average filter time window is t_ma = 20 s.

In the tasks about PID-control: Set the set-point weights wp and wd equal to 1, and the coefficient a = Tf/Td equal to 0.1 (these are also the default values as set on the front panel). Let the PID-controller have anti-windup.

1. First: No controller! Set the controller in manual mode. Give the outflow a step from e.g. 1500 to 1800 kg/min, which implies that unom no longer fits to the nominal outflow, Fout,nom. Characterize the response in the level. Is control using a fixed value of the manipulated variable (unom =  constant) an acceptable way of controlling this process?
2. Then: Manual control, that is: YOU are the controller! Set the controller in manual mode. Give the outflow a step from e.g. 25 to 30 kg/s. Compensate for this disturbance by adjusting unom. How long time do you need to bring the level back to the set-point with an error less than 0.1 m? Are there any drawbacks with using a human being as a continuous controller?
3. Automatic control with a PID-controller: Parameter tuning Tune the PID-controller using the Ziegler-Nichols' closed-loop method.

In the following tasks you shall use the PID-parameter values as found in task 4. Alternatively, you can use the following PID-parameter values, which you can regard as "standard values":

Kc = 3.89, Ti = 1000 s, Td = 0 s = 135 sec.

4. Is the stability of the control system OK? Give wut a step from e.g. 1500 to 2000 kg/min, and observer how the level returns to the set-point. Does the control system have proper stability?
5. Compensation properties:
1. How large is the stationary control error using a PID-controller after a step in  wut from 1500 to 1800 kg/min?
2. How long time time does it take for the PID-controller to bring the level back to the set-point with an error smaller than 0,1m (after the step in wut as described above)?
3. Use a P-controller. Choose a proper value of Kc in the P-controller. How large is now the stationary control error? Zero?
6. Tracking properties: How large is the stationary control error with a PID-ontroller after a step in the set-point (choose the step value yourself)?
7. How the P-, I- and D-term woks: Observe how the three terms in the control signal, u, works after a step in the disturbance. (There is a button beneath the diagram of u to show the time-response of the individual control signal terms.)
8. How parameter changes influences the stability of the control system: Observe how the stability of the control system changes due to the parameter changes describes below. In each subtask/experiment you can excite the control system with a small step in the set-point. The experiments must be performed independant of each other, that is, you have to reset the parameters to the standard values (defines above) between each experiment.
1. The controller gain Kp is increased (much).
2. The integral time Ti is reduced (much).
3. The derivate time Td is increased (much).
4. The transport time (time delay) ttransp of the conveyor is increased (much).
5. The cross sectional area A is reduced (much).
9. The importance of using the correct measurement function in the setpoint generation:

1.  What happens with the control error of the set-point gain Km,LC is different from the measurement gain Km,LT?
2.  What happens with the control error if the lower limit, rm0, of the set-point range is different from the lower limit, ym0, of the measurement range?
10. Measurement lowpass filter: Demonstrate that the measurement lowpass filter attenuates the noise component of the measurement signal. Also demonstrate that the filter reduces the variation of the control signal. (Compare the behaviour of the signals with filter and without filter.) In general, what may be the drawback of large variations of the control signal?

11. Derivative term and measurement noise: Demonstrate that the derivative term of the controller causes the control signal to vary more (compared to not having derivative term).
