Feedforward Control of Tank Temperature

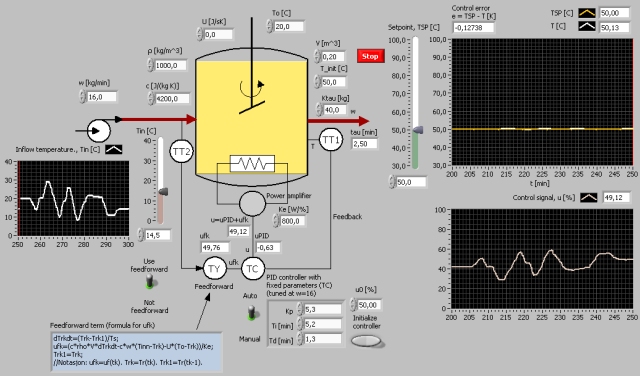

Snapshot of the front panel of the simulator:
of
the frontpanel of the simulator
What is needed to run the the simulator? Read to get most recent information!
Tips for using the
simulator.
The simulator: feedforward_control.exe
(click to download).
The simulator runs immediately after the download by clicking Open in
the download window.
Alternatively, you can first save a copy of the exe-file on any directory (folder)
on your PC and then run the
exe-file, which starts the simulator.
Introduction
The system being simulated is a temperature control system based on
feedforward control in addition to feedback PID control from temperature
measurement.
Tasks
In all the task below, use feedback control (with PID controller) in
addition to feedforward control. It is assumed that the simulator runs as
you do the tasks.
- Tuning the PID controller:
Tune the PID controller using e.g. the Ziegler-Nichols'
closed-loop method.
- Feedforward control at setpoint
changes:
- Add a ramp to the temperature setpoint. What is the steady-state
control error with and without feedforward control?
- Use feedforward control. Adjust the setpoint manually (e.g. like a ramp),
which will give more or less randomly abrupt setpoint changes.
How does the control signal react as compared to a smoother setpoint
ramp, as in task no. a above?
- Feedforward control at disturbance
changes: Change the inflow temperature.
Is the control error be reduced by introdusing feedforward control?
